Product Description:

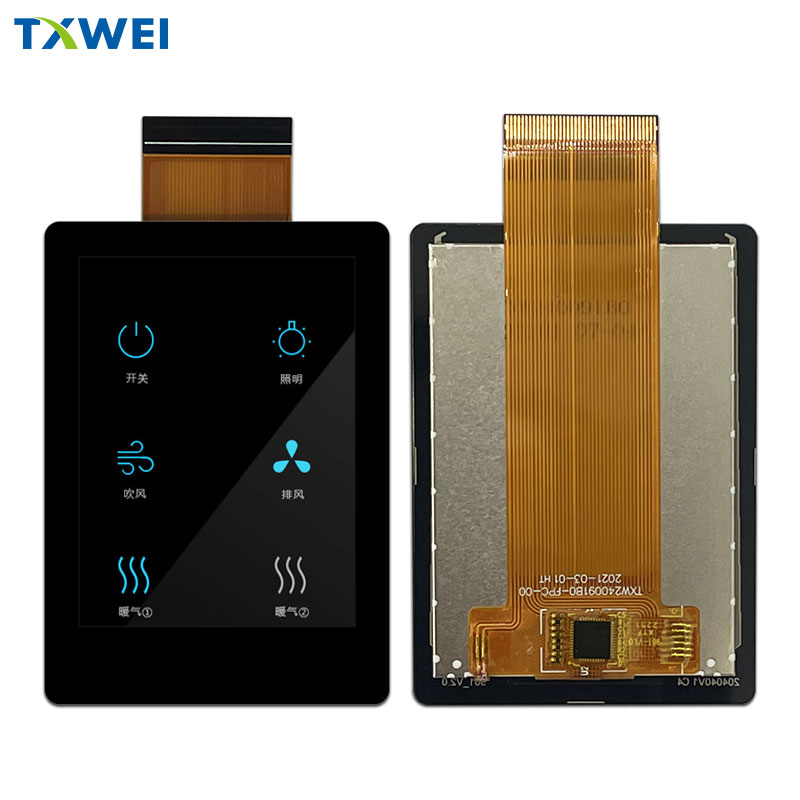

- TXW240091S0-CTP is a 2.4-inch full-color TFT LCD display with a resolution of up to 240 * 320, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and high brightness display of 600cd/m².
- The TFT LCD Display features a Backlight voltage of 3v, ensuring that your display will be bright and easy to read in any lighting conditions. Whether you're working in bright sunlight or a dimly lit room, our High Brightness TFT Display will ensure that your image is clear and easy to see.
- Operating at a temperature range of -20+70, this TFT LCD Display is perfect for a wide range of applications. Whether you're working in a hot or cold environment, our display will continue to function seamlessly and deliver a clear image.
- The Lumens degrees of 600cd/m² ensures that this display is bright enough to deliver a clear image, even in outdoor settings. If you're looking for a display that can be easily read in bright sunlight, our High Brightness TFT Display is the perfect choice.
- Model Number: TXW240091S0-CTP, this TFT LCD Display comes in a Mechanical Outline Size of (W*H*T) 46.32*63.86*3.67mm, making it compact and easy to integrate into your project.
- This product is widely used in handheld FRID displays, instrument displays, medical equipment displays, household appliance displays, industrial equipment displays, driving recorders, photography equipment, etc.
- Whether you're looking to create a new project or upgrade an existing one, our High Brightness TFT Display is the perfect choice. With its clear and vivid image, ease of use, and wide range of applications, this display is sure to exceed your expectations.
Features:
- Product Name: TFT LCD Display
- Model Number: TXW240091S0-CTP
- Storage Temperature: -30+80
- Lumens Degrees: 600cd/m²
- Lcm Pin N Count: 40PIN
- Mechanical Outline Size (W*H*T): 46.32*63.86*3.67mm
This TFT LCD Display is perfect for use with Arduino projects, as well as for Elevator TFT LCD Display applications.
Technical Parameters:
| Product Attribute | Value |
| Product Name | Arduino TFT LCD Display |
| Size | 2.4 inches |
| Mechanical Outline Size(W*H*T) | 46.32*63.86*3.67mm |
| Active Area | 36.72*48.96 |
| Number of Pixels | 240*320 |
| Backlight Voltage | 3V |
| Backlight Current | 20mA |
| LCM Interface | MCU 8/16 BIT Interface |
| LCM Driver IC | ST7789V |
| Operating Temperature | -20+70 °C |
| Storage Temperature | -30+80 °C |
| Application | Elevator TFT LCD Display |
Applications:
The TXW240091S0-CTP is a 2.4-inch LCD display that is perfect for various applications. It has a Mechanical Outline Size of 46.32*63.86*3.67mm, which makes it compact and easy to integrate into different systems. The LCM interface that it uses is an MCU 8/16 BIT Interface, and it is driven by the ST7789V LCM Driver IC.
One of the applications of the TXW240091S0-CTP is as an HDMI TFT LCD Display. This product can be used to create high-quality displays for various devices that require an HDMI interface. The TXWEI HDMI TFT LCD Display is capable of producing 600cd/m² of lumens, which ensures that the display is bright and clear.
Another application of the TXW240091S0-CTP is as an Elevator TFT LCD Display. This product can be used to create displays for elevators that are clear and easy to read. The compact size of the display makes it ideal for use in elevators where space is limited.
The TXW240091S0-CTP is a versatile product that can be used in various scenarios. It has a minimum order quantity of 1 and is packaged in cardboard. The delivery time for this product is 16 days, and it has a supply ability of 10,000pcs. With its high-quality display and advanced features, the TXWEI TXW240091S0-CTP is the perfect choice for customers who are looking for a reliable and versatile TFT LCD display.
Support and Services:
Our TFT LCD Display product technical support and services include:
- Installation and setup guidance
- Troubleshooting assistance for hardware and software issues
- Repair and replacement services for defective products
- Technical documentation and user manuals
- Training and education for product use and maintenance
- Remote support and troubleshooting
- Customization and development services for specific needs
Our team of experts is dedicated to ensuring that our customers have a positive experience with our products and receive the support they need to achieve their goals.
