Application
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.
Product Advantages
1.Excellent display performance of background color, luminance, viewing angle, and intensity etc. surface luminance can be reach 450 nits.
2.High quality level for industrial Human machine interface operation panel and medical applications.
3.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
4.Price competitive solution with good quality among the same kinds in the LCD industry.
5.Easy to install and easy to maintain.
6.This product boasts several certifications, including CE, ROHS, and FCC, ensuring that it meets the highest standards of quality and safety. With a minimum order quantity and price that can be negotiated, this LCD module is an affordable option for businesses of all sizes.

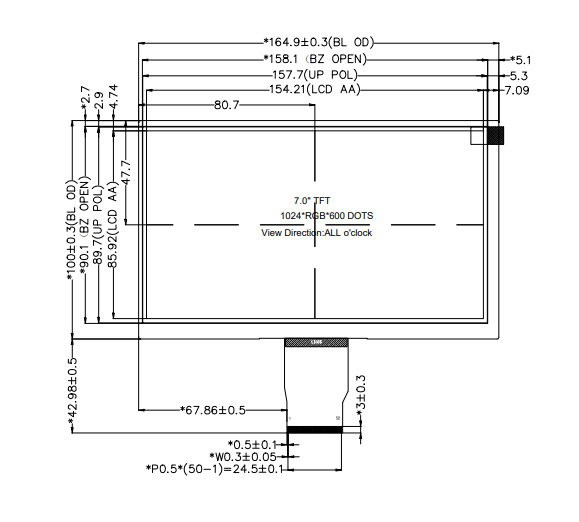

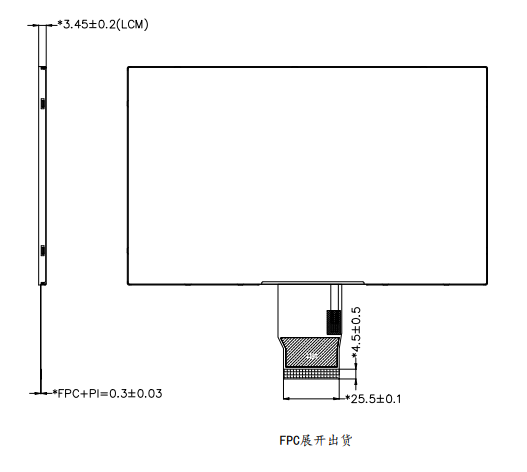

7" inch QVGA TFT RGB LCD Drawing

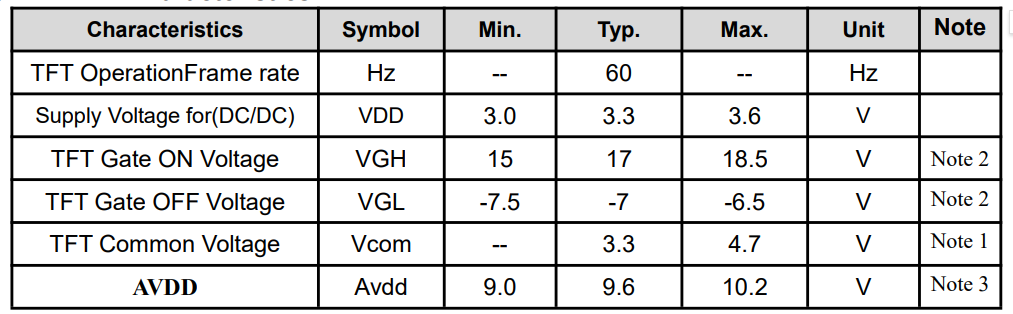

TFT DC Characteristics
Note 1: VCOM value should be adjusted by different condition to optimize Flicker Value.
Note 2: VGH and VGL are the operating voltages of TFT gate.
Note 3: Adjust the contrast, make the color bigger and darker, and make the color smaller and lighter.

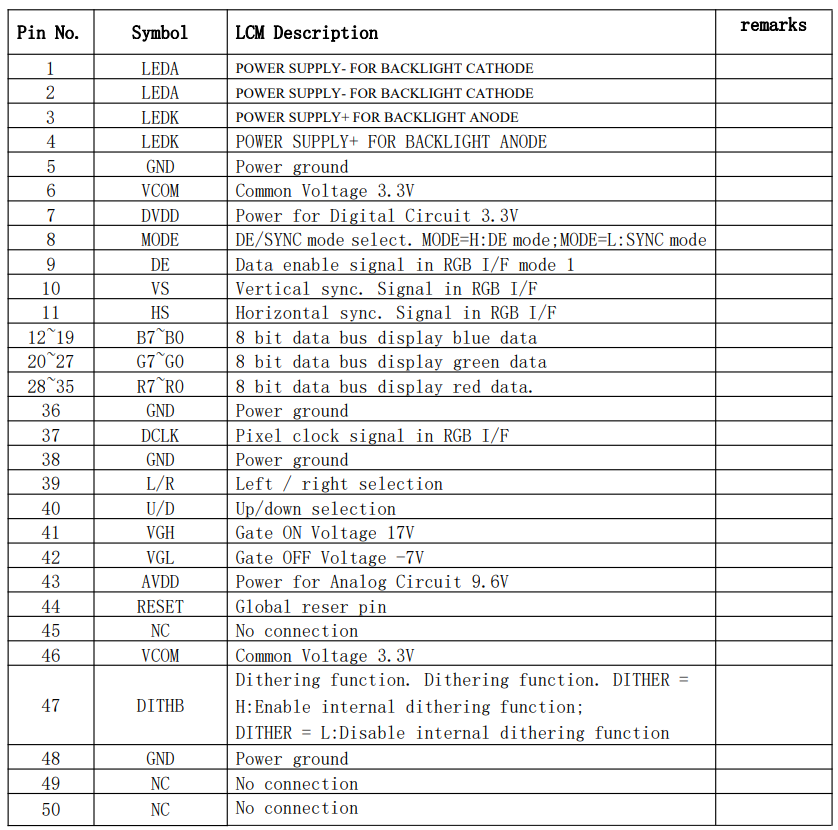

Module Function Description

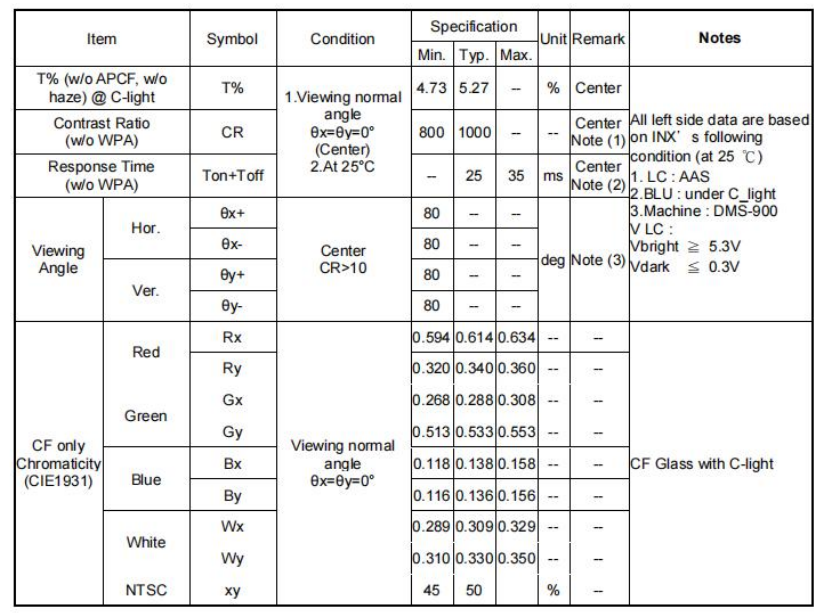

Optical Characteristics
*Note (1)Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.Contrast Ratio (CR)=L255/L0
L 255 : Luminance of gray level 255
L 0: Luminance of gray level 0

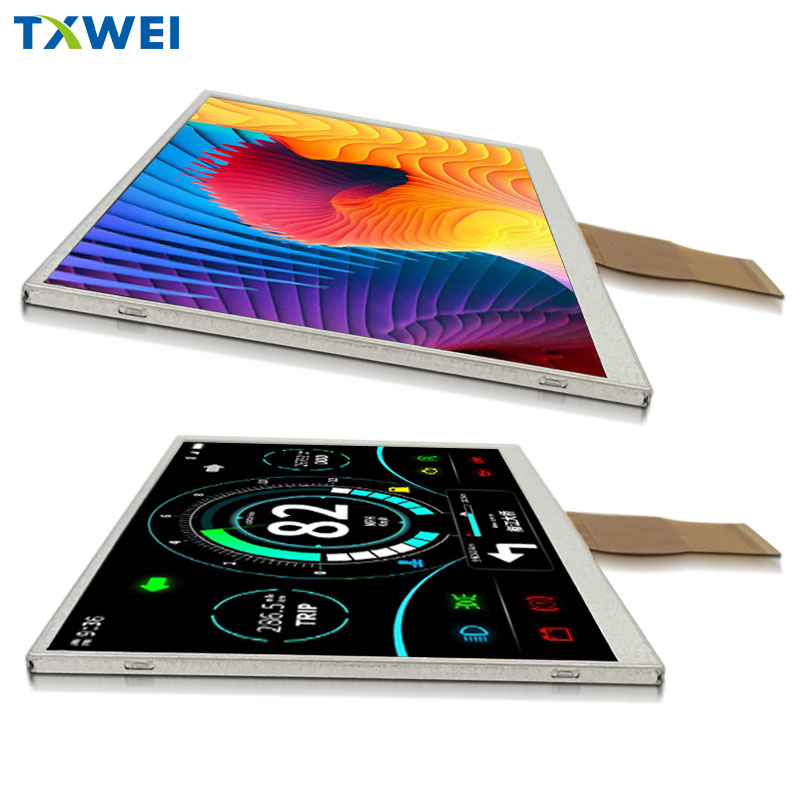

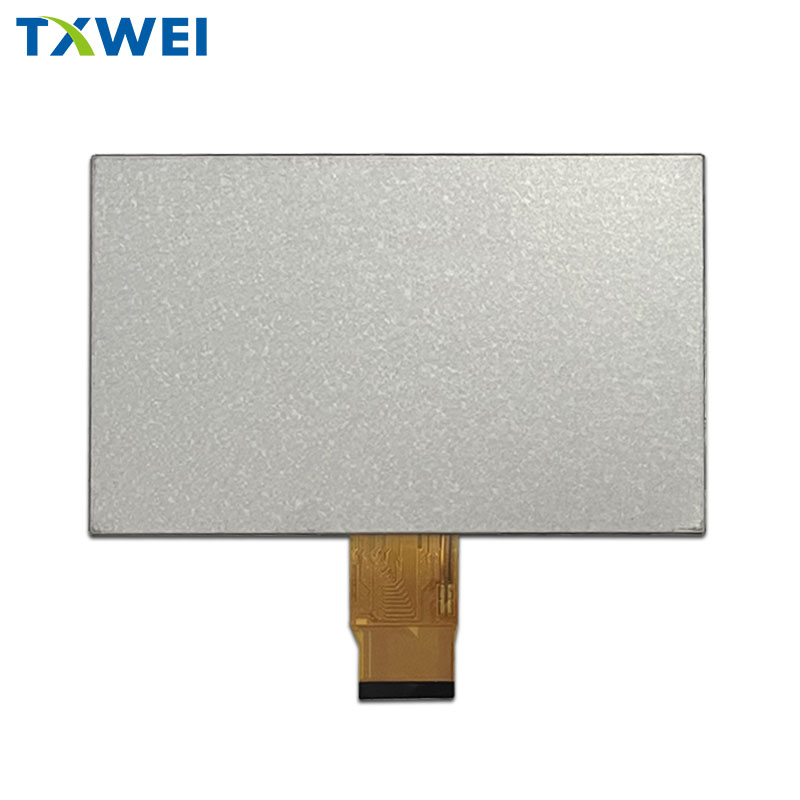

7" inch QVGA TFT RGB LCD Real Product Image
