Product Description:
TFT LCD Module - High Resolution Display for Optimal Visual Experience

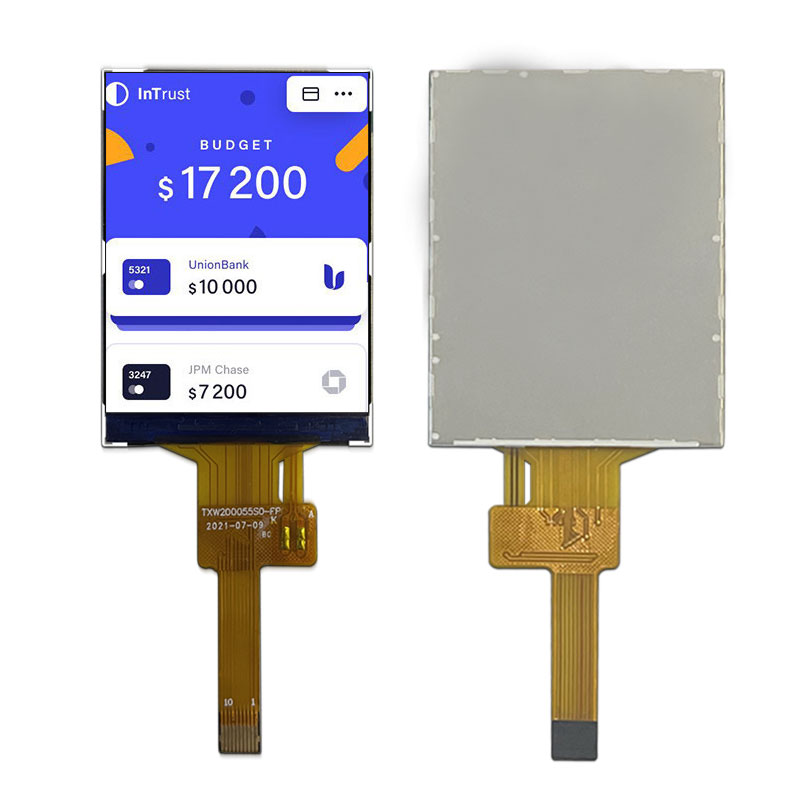

TXW200055S1 is a 2-inch full-color TFT IPS LCD display screen with a resolution of 240 * 320, IPS full angle high-definition highlight
display effect, wide temperature range of -20+70 working temperature, and brightness of 1000cd/m ².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional
full process technical support services, first-class production quality control, and professional after-sales service guarantee.
Key Features
- High Resolution: With a pixel density of 240*3RGB(H)X320(V), the TFT LCD Module offers a sharp and clear display that enhances the visual experience.
- Wide Temperature Range: The operating temperature range of -20°C to +70°C makes this display module suitable for use in various environments.
- Vibrant Colors: The RGB Stripe pixel arrangement produces vibrant and accurate colors, creating a more lifelike visual experience.
- TFT Active Matrix: The TFT LCD Module uses an advanced drive element known as TFT Active Matrix, which provides faster response times and better image quality compared to traditional LCD displays.
- TFT Touch Display: The TFT LCD Module can be equipped with a touch panel,
- Application areas: E-Bike instruments, handheld PDAs, medical devices, automotive electronics, home appliances, driving recorders, children's cameras, sports DVs, etc
Features:
- Product Name: TFT LCD Module
- Pixel arrangement: RGB Stripe
- Lumens degrees: 1000Cd/m²
- Model Number: TXW200055S1
- Active area: 30.6(H) *40.8 (V)
- Number of pixels: 240*3RGB(H)X320(V)
- Custom TFT display
- TFT LCD screen
- TFT display manufacturers
Technical Parameters:
| Technical Parameter | Value |
| Number of pixels | 240*3RGB(H)X320(V) |
| Pixel arrangement | RGB Stripe |
| LCD Type | Normally Black |
| Lumens degrees | 1000Cd/m² |
| Active area | 30.6(H) *40.8 (V) |
| Model Number | TXW200055S1 |
| Drive element | TFT Active Matrix |
| Operating temperature | -20+70 |
| Size | 2.0 inches |
| Keywords | tft lcd screen, tft lcd, tft touch display |
TFT LCD Module - TXW200055S1
Product Description
The Small size TFT Display, also known as Thin Film Display Panel, is a sleek and modern display that offers high resolution and excellent image quality. It is designed and produced by TXWEI, a renowned brand in the electronics market. The model number of this display is TXW200055S1 and it is manufactured in Guangdong, China.
Features and Benefits
- High-resolution display: The Square TFT Display has a total of 240*3RGB (H) X 320 (V) pixels, providing sharp and clear images.
- Wide operating temperature: It can operate in a temperature range of -20°C to +70°C, making it suitable for various environments and applications.
- User-friendly interface: The display is easy to use and can be controlled with just a few buttons, making it ideal for beginners and professionals alike.
- CE, ROHS, and FCC certified: The Square TFT Display has passed rigorous testing and obtained these certifications, ensuring its quality and safety.
- Compact and lightweight design: With dimensions of 34.6*47.83*2.1 mm, this display is portable and can be easily integrated into any device or system.
- Multiple payment options: Customers can choose to pay for their orders through L/C, TT, or D/P, making the purchasing process convenient and flexible.
- Enhance your display experience with our Thin Film Display Panel - TXWEI TFT Display Panel. Our TFT-LCD Monitor offers high resolution, vibrant colors, and wide viewing angles, making it perfect for various applications such as E-Bike instrument, handheld PDA, medical equipment, automotive electronics, home appliances, dashcam, children's camera, sports DV, etc
- With our customization service, you can tailor the TFT-LCD Monitor to your specific needs. Choose from different certifications, adjust the size and operating temperature, and even select the LCM Driver IC that best suits your requirements. We are committed to providing you with a personalized and high-quality display solution.
- Contact us now to discuss yourTFT-LCD Monitor customization needs and get a quote. Let us help you bring your vision to life with our reliable and innovative display solutions. Trust in TXWEI for your Square TFT-LCD Monitor customization needs.
